How to use the built-in profiler in FirefoxOS

作者:
瀏覽:650

Profiling 這個技術可以提供系統執行時的歷程,讓我們評估並找出系統效能的瓶頸。Firefox OS 目前提供了 built-in profiler, 我們可以利用 profile.sh 這個 script 來幫助我們從 device 擷取 profiling information,並且利用 cleopatra 這個工具來分析 profiling information。在我們開始使用 profiler 之前,我們需要 Firefox OS 的 local build,並且需要將你的 device 接到電腦上,並確定你可以使用 ADB 這個工具從 device 上傳和下載資料。一切就緒後,就讓我們開始使用 profile.sh 來擷取系統的 profiling information 吧。

我們可以在 Firefox OS 原始碼的根目錄下找到 profile.sh,這個 script 目前提供了下列這些功能:

./profile.sh start ./profile.sh ps ./profile.sh capture [pid or name] ./profile.sh stop ./profile.sh ls ./profile.sh signal [pid] ./profile.sh pull pid [NAME [HHMM]] ./profile.sh symbolicate filename ./profile.sh help

我們可以利用 profile.sh help 這個指令來取得詳細的說明。

在這些指令當中,最常用的就是 profile.sh start 及 profile.sh capture 指令。profile.sh start 指令可以重新啟動 Firefox OS 並且開始記錄系統執行時的歷程,當我們下了這個指令後,FireFox OS 就會啟動 built-in profiler,然後記錄系統執行時的 profiling information (program counter (PC), stack pointer (SP) , frame pointer (FP) 及 timestamp) 。利用這些資訊及 symbol table,我們就可以知道系統執行過那些 functions 及其執行的次數。目前 built-in profiler 是利用 Periodically Sampling 及 Static Instrument 這兩種方式來記錄系統執行的歷程。Periodically Sampling 的方式跟 Oprofile 的想法是類似的,Firefox OS 在啟動 built-in profiler 時會產生一個新的 Thread,這個 Thread 會定期的產生 SIGPROF signal 給 Firefox OS process, Firefox OS process 收到 SIGPROF signal 後,透過 signal handler來記錄 profiling information。我們也可以利用 Static Instrument 的方式,在 performance critical 的 function 加上 SAMPLE_LABEL (name space, function name) 來記錄 profiling information。在得到了 profiling information 後,我們可以利用 profile.sh capture 這個指令將 profiling information 從電話拷貝到 host PC。其命名格式為 profile_HHMM_PID_NAME.txt。接下來我們需要利用分析工具來幫助我們分析 profiling information。我們可以將 profiling information 上傳到下面這個網址。

http://people.mozilla.com/~bgirard/cleopatra/

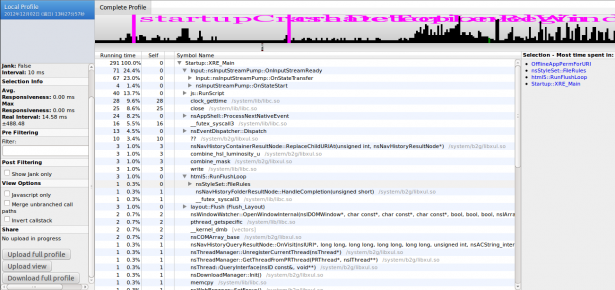

接下來,我們就可以得到 cleopatra 分析的結果了。

How to use the built-in profiler in FirefoxOS

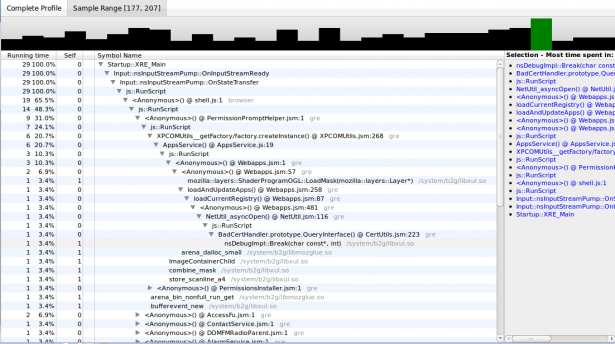

我們還可以針對可能的 performance bottleneck 作細部的分析如下圖,

How to use the built-in profiler in FirefoxOS

眼尖的讀者可能會發現,我們的 profiling information 還有包括 Javascript 喔,是不是很 Cool 呢 ?

[1] https://developer.mozilla.org/en-US/docs/Performance/Profiling_with_the_Built-in_Profiler
