如何在使用者點擊 Notification 通知後,傳遞參數給 App?

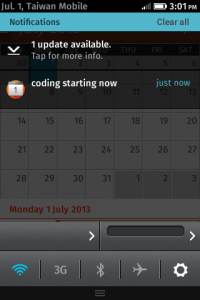

當使用者從 Firefox OS 手機收到一封新簡訊,在點下 Notification Bar 的簡訊通知後,預載的 SMS App 就會被啟動,但你知道在此過程中,預載的 SMS App 是如何切換到正確的簡訊串列來顯示簡訊內容的呢?
首先,使用 navigator.mozNotification.createNotification
可以在 Notification Bar 中加入一個 notification 通知。下面是建立一個 notification 通知的範例程式碼:
var title = '+886933123456'; var body = 'Hello!'; var icon = 'app://sms.gaiamobile.org/icon.png'; var notification = navigator.mozNotification.createNotification(title, body, icon);
接下來,就是需要傳遞電話號碼參數給 SMS App,讓它知道要開啟哪個電話號碼的簡訊串。很可惜的,在使用 createNotification
函式建立 notification 時並沒有提供傳遞參數的機制。
讓我們來用 hacking 的方式來達成這個任務吧。我們可以在使用 createNotification
函式時,利用函式中的 iconURL 參數來傳遞電話號碼給 SMS App。iconURL 是一個圖示的 URL,它的值可能會是這樣:app://sms.gaiamobile.org/icon.png
而下面是 createNotification 函式的 Spec:
notification createNotification( in DOMString title, in DOMString description, in DOMString iconURL Optional );
接下來,在 iconURL 最後面先加入一個 ?,再把電話號碼放在 iconURL 參數的後面,像是這樣:app://sms.gaiamobile.org/icon.png?+886933123456
這樣在 SMS App 在接收到 notification 的 system message 後,就可以在 navigator.mozSetMessageHandler
註冊的 callback 函式拿到電話號碼。下面是 SMS APP 接收電話號碼的範例程式碼:
navigator.mozSetMessageHandler('notification', function notificationClick(message) { if (!message.clicked) { return; } navigator.mozApps.getSelf().onsuccess = function(evt) { var app = evt.target.result; app.launch(); // Getting back the number form the icon URL var notificationType = message.imageURL.split('?')[1]; // Case regular 'sms-received' if (notificationType == 'sms-received') { var number = message.imageURL.split('?')[2]; showThreadFromSystemMessage(number); return; } var number = message.title; // Class 0 message var messageBody = number + '\n' + message.body; alert(messageBody); }; });
奇妙的事發生了,這樣就可以了,耶!
以上是一個 hacking 的做法,始終不是一個長久之計啊。我們來參考一下 W3C Web Notifications 的標準吧。大家可以看到有一個 tag 的參數,在 SMS App 的例子中,我們可以用它來傳遞電話號碼給 SMS App,像是這樣:
new Notification( "+886933123456", { iconUrl: "app://sms.gaiamobile.org/icon.png", body: "Hello!", tag: "tel=+886933123456" } );
接下來,Firefox OS 當然會支援 Web Notifications 的標準(code 已經準備好了,就等 land 進去啦),之後我們就不用再這麼 hack 了。好,謝謝大家。:)
參考資料:
- http://www.w3.org/TR/notifications/
- https://developer.mozilla.org/en-US/docs/DOM/navigator.mozNotification
- https://github.com/mozilla-b2g/gaia/blob/master/apps/sms/js/activity_handler.js#L175
